Have you ever walked into a room and noticed a fire extinguisher box placed awkwardly high or frustratingly low? I know I have, and it always makes me wonder if it could be reached quickly in a real emergency. This isn't just about aesthetics; it’s a critical safety concern. As someone deeply involved in fire safety, I understand that proper placement is as important as the equipment itself. A Fire Extinguisher Box must be instantly accessible to everyone, from tall adults to those with mobility challenges. Getting this right can be the difference between a contained incident and a catastrophe. Today, I want to clear up the confusion and share the professional guidelines, while also introducing how Huimei’s thoughtful design takes the guesswork out of this crucial installation step.
Why Does the Mounting Height of a Fire Extinguisher Box Matter
Think about a moment of panic. Every second counts. If a Fire Extinguisher Box is mounted too high, a person might struggle to lift a heavy unit down. If it’s too low, it becomes an obstruction and is vulnerable to damage. The core principle is clear and accessible visibility and reach. Standards like the NFPA (National Fire Protection Association) provide specific ranges to ensure that the fire extinguisher’s operating instructions are at a readable eye level and the unit itself can be retrieved without strain. This isn’t just a best practice—it’s about ensuring that our safety equipment truly works for us when we need it most.
What Are the Official Standards and Recommendations
So, what is the magic number? While local codes can vary, the widely accepted rule, based on NFPA 10, focuses on the top of the Fire Extinguisher Box or the extinguisher itself if not in a cabinet.
For a standard wall-mounted unit, the top should be no more than 60 inches (5 feet) above the floor.
The bottom of the unit should be at least 4 inches above the floor to prevent moisture damage and allow for cleaning.
However, the key is the weight. For heavier extinguishers over 40 lbs, the top should not exceed 42 inches (3.5 feet) above the floor. This considers the physical effort required to lift it safely.
Here is a quick reference table based on common extinguisher types:
| Extinguisher Type | Approx. Weight | Max. Height to Top of Unit | Key Consideration |
|---|---|---|---|
| 5-lb ABC Dry Chemical | 7-10 lbs | 60 inches | Standard for offices, hallways. |
| 10-lb ABC Dry Chemical | 15-18 lbs | 60 inches | Common in workshops, garages. |
| 20-lb ABC Dry Chemical | 30-35 lbs | 60 inches | Requires careful mounting on studs. |
| 40-lb+ Wheeled Units | 40+ lbs | 42 inches | Ensure handle is easily graspable. |
How Does Huimei Simplify Correct Installation
At Huimei, we believe safety should be straightforward. We design our Fire Extinguisher Box products with these human factors and regulations front of mind. Our mounting brackets are pre-configured to align with the standard height range, and our clear installation templates take the measurement guesswork away. Furthermore, our cabinets are built with durable, corrosion-resistant materials, ensuring that once you mount your Huimei Fire Extinguisher Box at the proper height, it remains a reliable and compliant safety sentinel for years to come. We don’t just sell a box; we provide a complete, code-conscious safety solution.

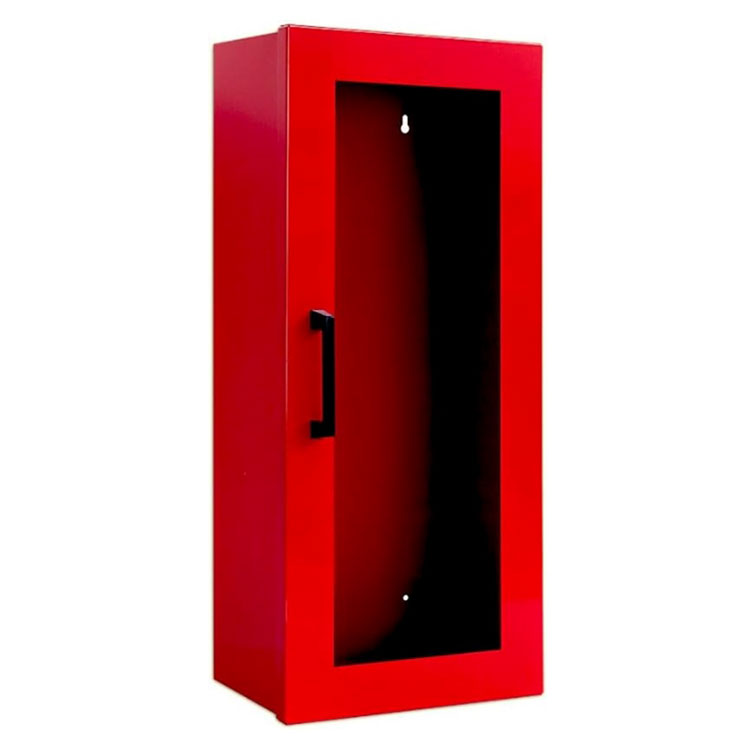

What Features Should You Look for in a Quality Fire Extinguisher Box
Choosing the right cabinet is crucial. Look for these features that Huimei incorporates into our designs:
Clear, Tempered Glass Front: Allows for immediate visual inspection of the gauge and unit without opening.
Robust Locking Mechanism: Prevents tampering but allows for emergency break-glass or key access.
Pre-Drilled Mounting Holes: Aligns with standard wall studs for secure installation.
High-Visibility Signage: Often included on the glass to draw attention.
Adequate Internal Space: Accommodates the extinguisher and allows for easy re-racking.
Have You Verified Your Fire Extinguisher Box Placement Today
I encourage you to take a quick walk around your home or facility today. Check those mounts. Is the Fire Extinguisher Box within the recommended height range? Is it completely unobstructed? This simple five-minute audit could be one of the most important safety checks you do. For those looking to upgrade or install new units with confidence, partnering with a brand that prioritizes correct installation from the start is key.
Ensuring your fire safety equipment is properly positioned is a fundamental step in protecting what matters most. If you have questions about the best mounting solution for your specific space or want to explore our range of easy-to-install, compliant cabinets, we are here to help. Contact us today for a consultation or to request a catalog. Let Huimei be your partner in building a safer environment.
