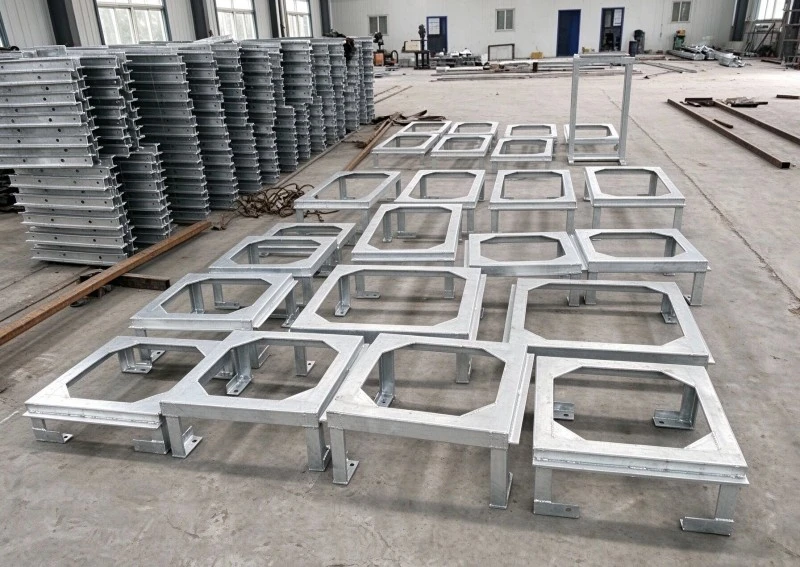

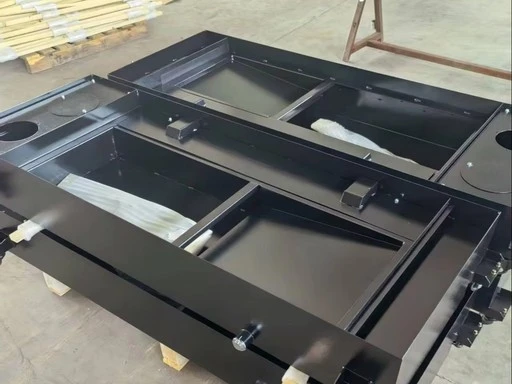

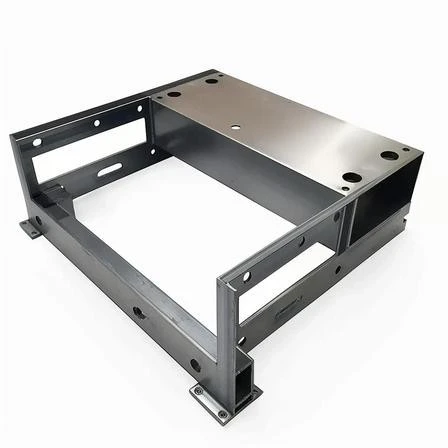

Sheet Metal Equipment Base

Sheet metal equipment bases are specifically engineered for heavy-duty industrial applications. They are constructed using either welded thick-walled square tubing or precision-bent sheet metal. Compared to simple, thin-plate supports, these reinforced welded frames offer superior rigidity, ensuring excellent flatness and vibration resistance even under sustained dynamic loads.

Products Specifications:

Customization & Adaptation:

Customizable Structural Design: Our bases feature a highly adaptable design, allowing for the integration of reinforcing ribs, cable routing holes, lifting lugs, and mounting holes as required. The top plate can undergo localized milling to achieve stringent flatness tolerances.

Flexible Material Selection: We tailor material choices to your specific load-bearing requirements, operating environments, and budget constraints. Options include carbon steel for heavy-duty applications, stainless steel for humid or corrosive conditions, and aluminum alloy for lightweight solutions.

Integrated Manufacturing Services: We provide a comprehensive, one-stop solution encompassing welding, grinding, tapping, milling, and surface treatment. Components are delivered fully finished and ready for immediate assembly, eliminating the need for any secondary processing.

Seamless Production Integration: We offer precise quotations based on CAD drawings, physical samples, or dimension lists. Pre-production samples are available for your review and approval prior to full-scale manufacturing, ensuring complete alignment with your specifications.

Manufacturing Process:

End-to-End In-House Production Control: We maintain strict in-house oversight throughout the entire manufacturing process to ensure consistent quality for industrial batch orders.

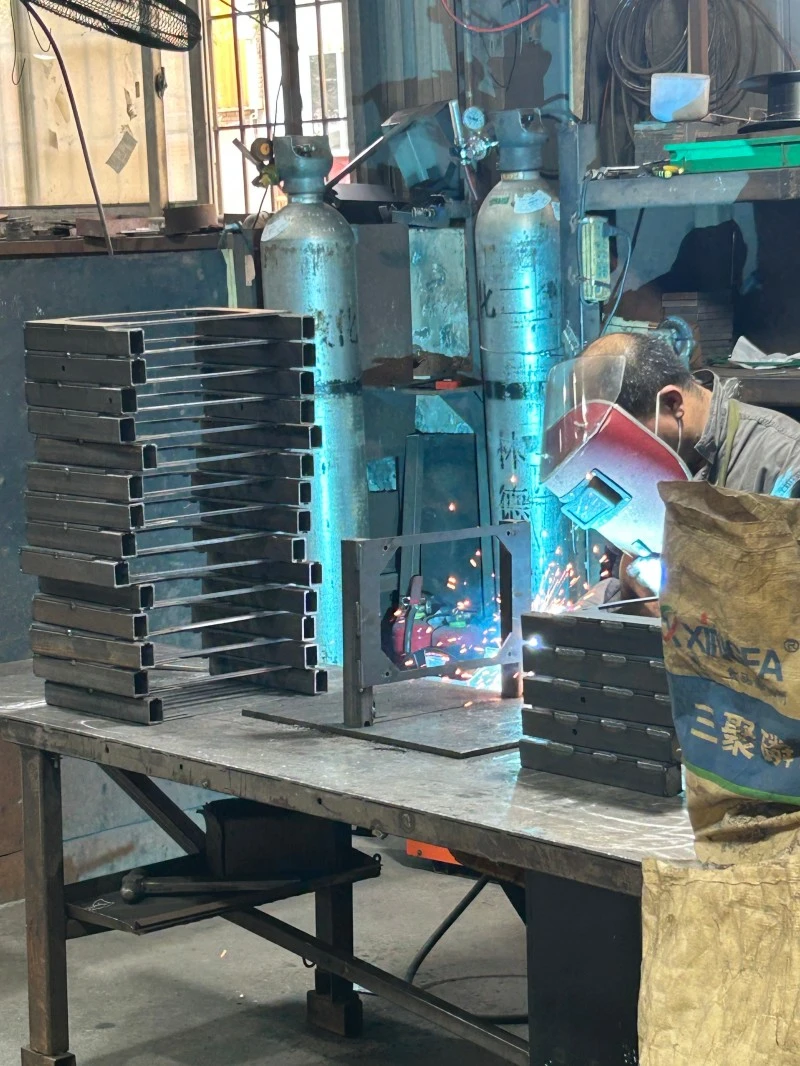

Core Processes: Raw material cutting → CNC bending & square tube fabrication → Frame welding & assembly → Weld grinding & alignment → Surface leveling → Optional top-plate milling → Protective surface treatment.

Final Inspection: Prior to shipment, every unit undergoes rigorous dimensional verification, flatness testing, visual inspection, and hole-position validation.

Key Product Advantages：

Robust Structural Design: Our reinforced welded structures deliver high rigidity and deformation resistance. Internal stiffeners and post-weld stress-relief processes ensure dimensional stability, even under continuous heavy loads or high vibration. The top plate can be precision-milled to achieve the high flatness required for mounting sensitive equipment.

Versatile Material Options: We offer a range of materials to suit diverse operating environments: Q235/Q355 carbon steel for cost-effective heavy-duty indoor use; stainless steel for superior moisture and salt-spray resistance in outdoor or harsh settings; and lightweight aluminum alloy for mobile equipment.

Pre-Configured for Installation: Structures can be pre-fitted with leveling feet mounts, anchor bolt holes, cable routing channels, and lifting points. These features are machined in advance, enabling immediate assembly upon delivery and eliminating the need for on-site modifications.

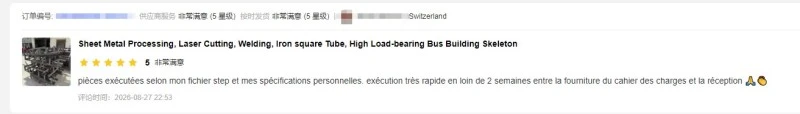

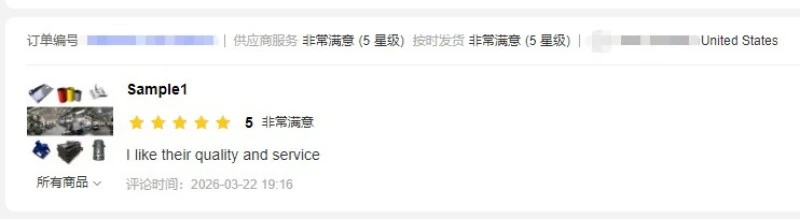

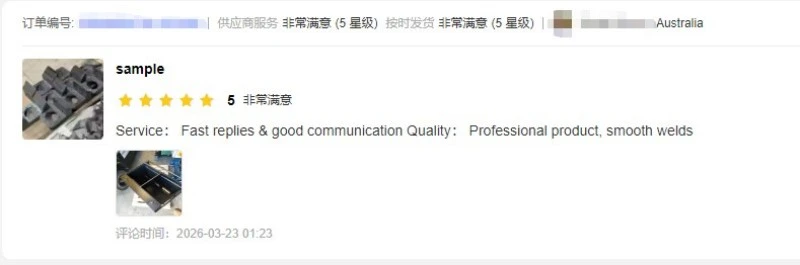

Genuine Customer Reviews：

Our welded equipment support frame have earned widespread recognition from clients worldwide. International customers consistently commend our precise customization based on STEP/DWG drawings, stable product quality, and refined welding craftsmanship. We are committed to rapid communication, reliable lead times, and a dedicated approach to both prototyping and bulk orders, ensuring on-time delivery to support the successful completion of every overseas project.

FAQ:

Q1: Can the stiffening rib layout be customized based on specific load-bearing points?

A: Yes. We strategically position stiffening ribs according to the equipment's center of gravity and load distribution to maximize rigidity and minimize deformation.

Q2: What welding options are available for the base joints?

A: We offer both continuous full-seam and intermittent spot welding, with all welds ground smooth. Stress-relief treatment is also available for applications requiring high flatness.

Q3: Is a carbon steel base prone to deformation under long-term heavy-duty use?

A: No. Deformation is effectively prevented through optimized material thickness and internal stiffening. For ultra-heavy equipment, we recommend upgrading material specifications and optimizing the structural design.

Q4: Can the top plate be milled to improve mounting flatness?

A: Yes. We can perform precision milling on the top plate to meet stringent flatness requirements for sensitive equipment mounting.

Q5: Can the base be designed with pre-drilled holes for leveling feet or anchor bolts?

A: Yes. We can pre-drill holes or embed nuts to accommodate various leveling feet or vibration-dampening mounts, facilitating easy on-site installation.

Q6: Is it possible to produce a prototype for approval before full-scale production?

A: Yes. We offer prototyping services to verify dimensions, flatness, and assembly fit. Mass production commences only after your final approval of the prototype.
